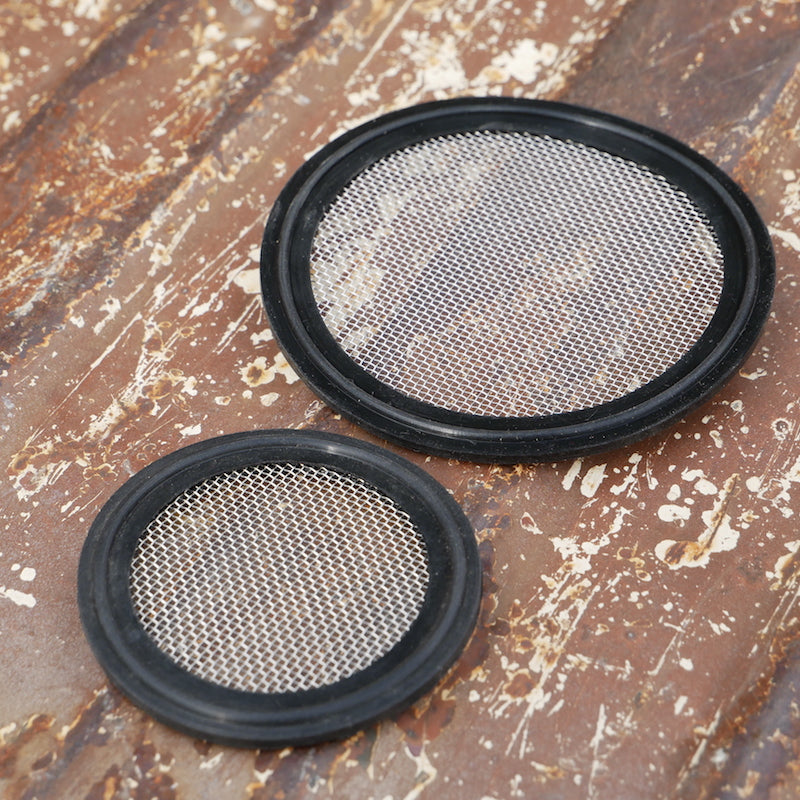

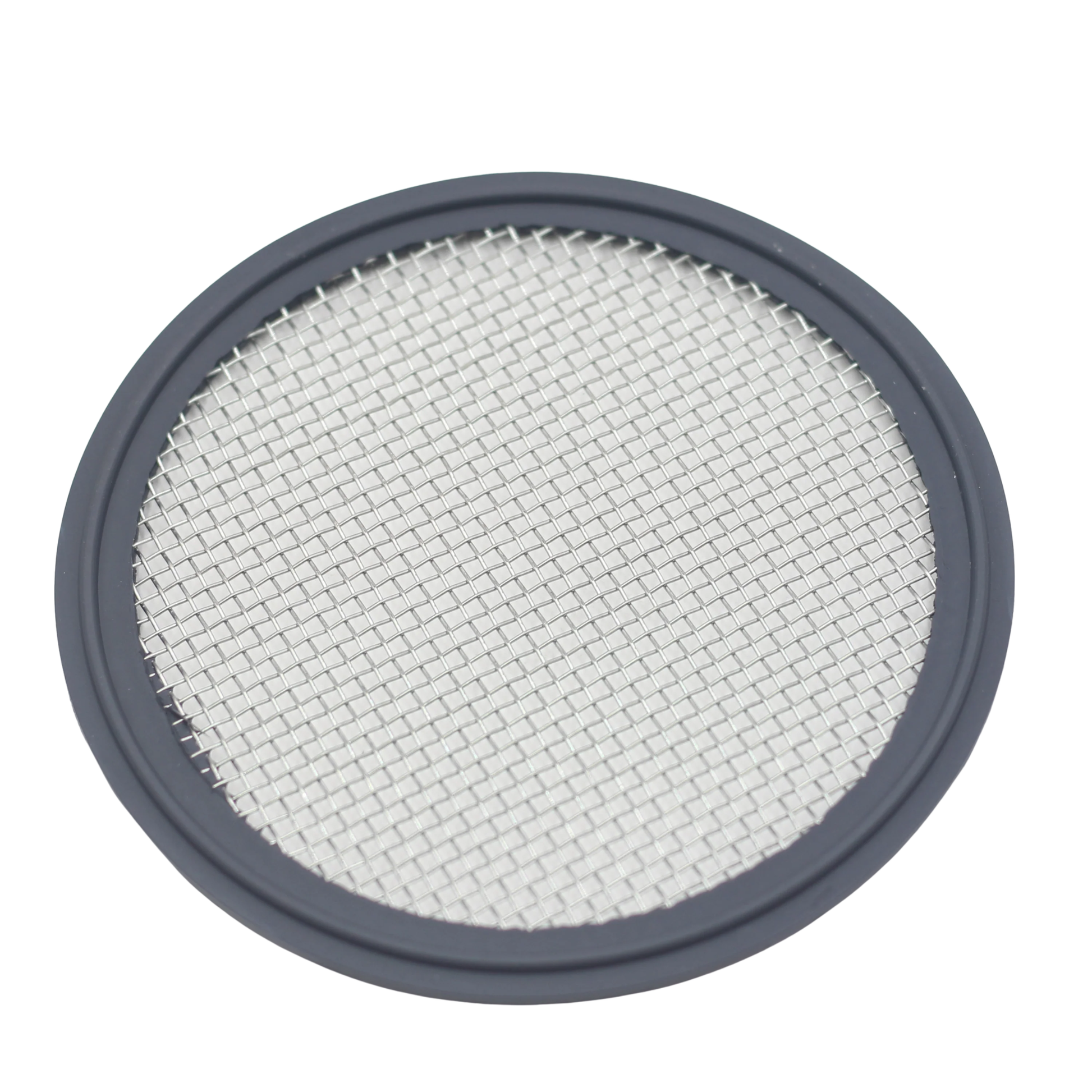

Screened Gaskets

Screened Gaskets

Regular price $32.00 USD
Regular price Sale price $32.00 USD
Sale Sold out
Shipping calculated at checkout.
Screened gaskets are a practical purchase for anyone doing closed loop BHO extractions as these gaskets are food grade and recognized as safe and sanitary. Protect your pump, valves and other components in fluid line.

  • Pre-filter before critical membrane filters

  • Generate turbulence for enhanced mass or heat transfer

  • Purify in chromatography applications

Screen gaskets are designed to be interchangeable with standard sanitary clamp gaskets. Gaskets are available in Viton® & FKM in mesh sizes of 10, 20, 40, 60 and 100.

Viton is capable of withstanding high temperatures while retaining its good mechanical properties, and is better at it than most other elastomers. The oil and chemical resistance are virtually unaffected by elevated temperatures, and the compounds remain relatively elastic up to temperatures of 400° F (204° C) and down to -40 F (-40 C). The mesh screen is made from 316 Stainless Steel. The stainless steel mesh screen supports a temperature up to 400° F. The screen is woven, it can be rolled, bent and put back in place with your bare hands. Screen gaskets are great for using with an oil extractor, as it keeps the plant matter from entering your final product.

Remember, when sizing the mesh screen for your filtration that the higher the number mesh the more strands per inch, i.e. 150 Mesh = 150 strands across 1 inch.
