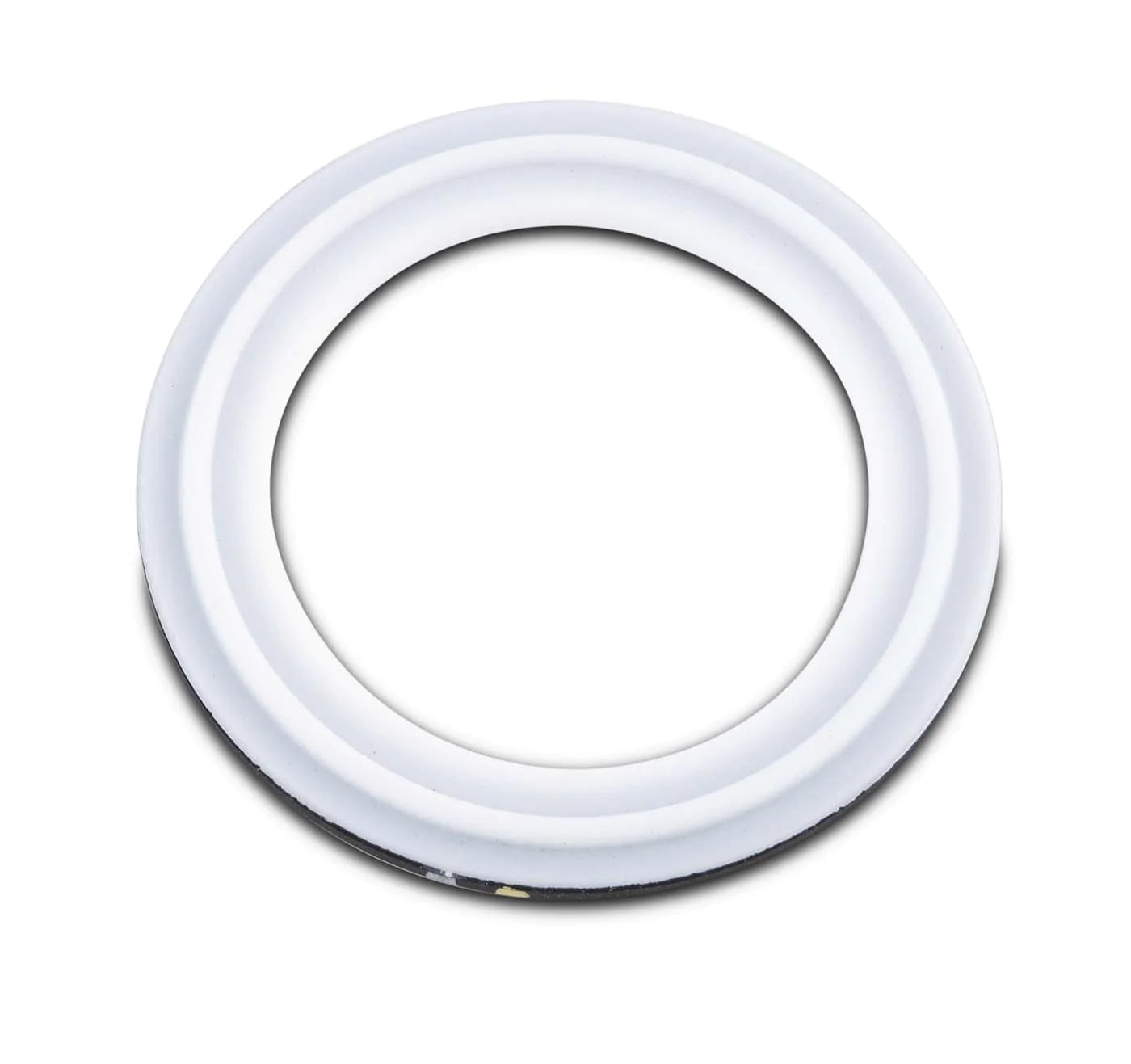

PTFE Envelope Tri-Clamp Gasket with Viton Filler

PTFE Envelope Tri-Clamp Gasket with Viton Filler

Regular price $10.00 USD
Regular price Sale price $10.00 USD
Sale Sold out
Shipping calculated at checkout.
Size

PTFE Envelope Tri-Clamp Gaskets are the only choice when needing extreme chemical resistance and temperature range. These gaskets are extremely unique in their construction because they have a Viton filler for compressibility surrounded by an 'Envelope' of PTFE which creates a unique combination of chemical resistance while providing an exceptional sealing characteristic. Normal solid PTFE gaskets are very tough to seal on their own and are usually not recommended in vacuum applications due to the gasket being very rigid because PTFE is not very compressible by itself. Tri-Clamp/ Tri-Clover Sanitary Fittings Gaskets create a pressure-tight seam between multiple stationary components, relying on a compression seal to prevent unwanted gas or liquid emissions.


Key Features:



  • Excellent resistance to almost all chemicals

  • Excellent Temperature Range

  • Excellent Cleanability due to PTFE (Teflon) Envelope

  • No Chemical Leaching















































Chemical Compatibility:
Material PTFE(Teflon)/Viton Filler(FKM)
Color White/Black
Connection Type Tri-Clamp
Conformance U.S.P. CLASS VI COMPLIANCEPasses USP Class VI Cytotoxicity Testing and is suitable for high purity pharmaceutical grade applications.PTFE is FDA 21, 177,1550 compliant and the FKM(Viton) inner cores are FDA CFR 21, 177.2600 compliant.
Thermal Properties: Low Temperature Range -100°F
Minimum Continous Use (Static) -65°F
Brittle Point -100°F
High Temperature Range +400°F
Maximum for Continous Use (Static) +400°F

BVV™ PTFE Gasket With Viton Filter - Data Sheet
