Across International

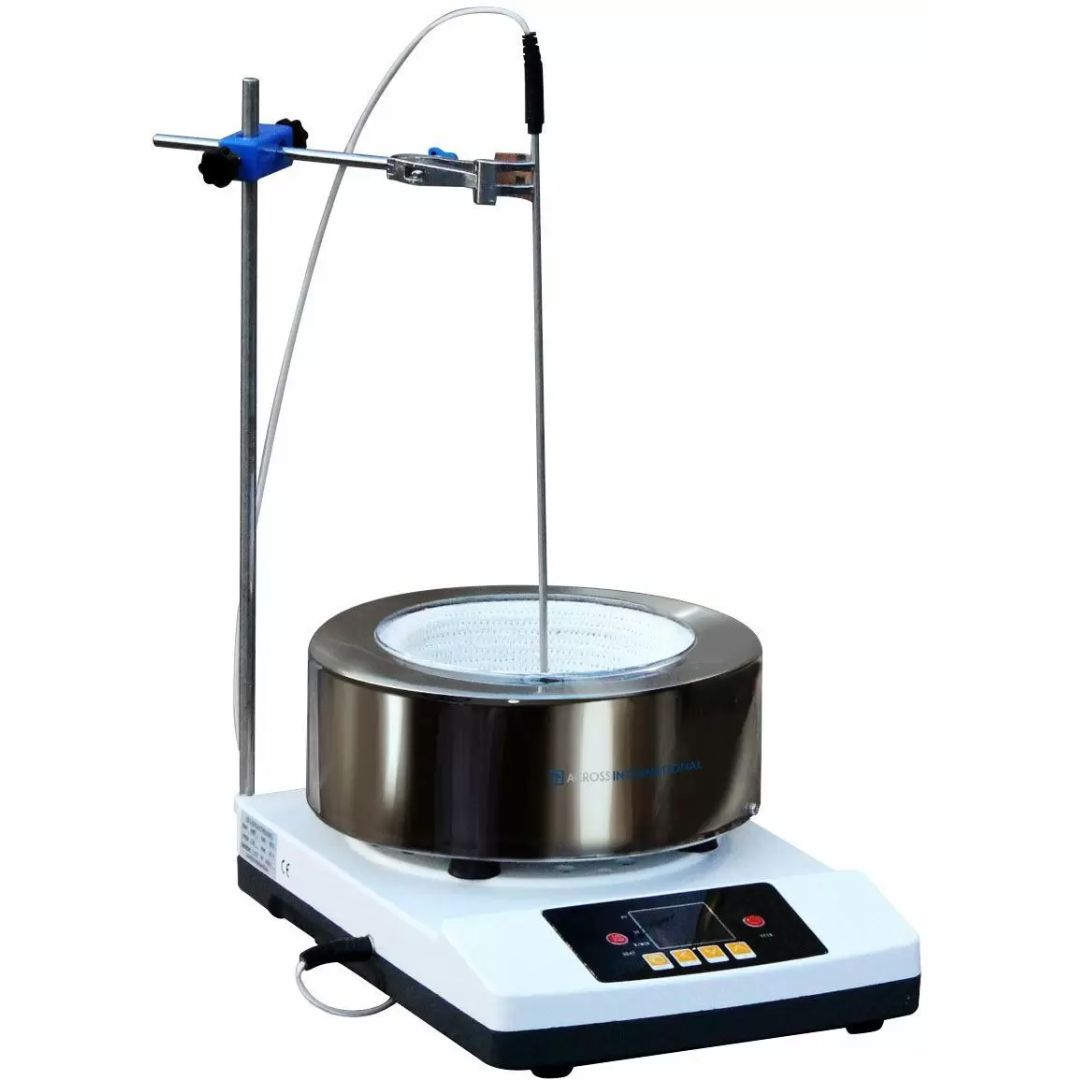

Ai DigiM 2L 300°C 1200 RPM PID Controlled Digital Heating Mantle
Ai DigiM 2L 300°C 1200 RPM PID Controlled Digital Heating Mantle
Regular price
$590.00 USD
Regular price
$690.00 USD
Sale price
$590.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.
The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.
Specifications
| Model |
DigiM2 |
|
Electrical requirements |
110V 60Hz 1-Phase, 700 watts, 8A or 220V 50/60Hz 1-Phase, 700 watts, 4A |
|
Heating |
Ambient to 300°C |
| Stirring | Min. speed: 110 rpm, max. speed: 1200 rpm Motor power: 40 watts Motor type: brushless DC motor |
| Controller | PID control with digital temperature and rotation speed display |
| External thermocouple |
Type: PT100 Cable length: 40 inches Stainless steel probe length: 9 inches Stainless steel probe diameter: 5 mm |
| Flask holder | Maximum flask capacity: 2 liters Top opening diameter: 6.5 inches Depth: 4 inches |
| Dimensions (WxDxH) | Unit: 11 x 16 x 8.5 inches, shipping: 20 x 14 x 13 inches |
| Weight | Unit: 14 lbs, shipping: 25 lbs |
| Safety | Thermocouple failure protection |
| Certification | ETL tested to UL and CSA standards (optional), CE (standard) |
